The main difference in wiring batteries in series vs. parallel is the impact on the output voltage and the capacity of the battery system. Batteries wired in series will have their voltages added together. Batteries wired in parallel will have their capacities (measured in amp-hours) added together.

What happens when you run batteries in series?

Batteries correctly placed in series, positive to negative, will add their output voltages, producing a greater voltage. If two 1.5 volt batteries are connected head to tail, the total voltage is 3.0 volt.

Can you put 2 12v batteries in series?

Two or more 12-volt batteries wired in parallel—positive to positive, negative to negative—is still a 12-volt system. Two or more 12-volt batteries wired in series—the positive terminal of one battery connected to the negative terminal of a second battery—develops 24 volts, but amperage doesn’t change.

Can I charge car batteries in parallel?

An example method of charging batteries in parallel is to use one branch of the parallel circuit to charge each battery with a single charger. Connect the positive output of the charger to the positive terminal of the first battery, and connect that positive terminal to the positive terminal of the second battery.

Does series or parallel give more power?

The power dissipated by each resistor is considerably higher in parallel than when connected in series to the same voltage source.

Do batteries last longer in series or parallel?

When batteries are hooked up In series, the voltage is increased. When batteries are hooked up in parallel, the voltage remains the same, but the power (or available current) is increased. This means that the batteries would last longer.

What is the advantage of connecting batteries in parallel?

Parallel battery configuration helps increase the duration in which batteries can power equipment, but due to the increased amp-hour capacity they can take longer to charge than series connected batteries.

What happens when you connect two 12 volt batteries in parallel?

Wiring batteries together in parallel has the effect of doubling capacity while keeping the voltage the same. For example; 2 x 12V 120Ah batteries wired in parallel will give you only 12V, but increases capacity to 240Ah.

How many 12V batteries can I connect in series?

To configure batteries with a series connection each battery must have the same voltage and capacity rating, or you can potentially damage the batteries. For example you can connect two 6Volt 10Ah batteries together in series but you can not connect one 6V 10Ah battery with one 12V 10Ah battery.

How to wire batteries in series?

How to Wire Batteries in Series (or in Parallel) Step 1: Bill of Materials. Okay you’re going to need some batteries to wire together and some way to wire them together. Step 2: Wiring Two Batteries in Series. Wiring multiple power sources in series will increase the available voltage. Step 3:

Can I connect batteries in series or in parallel?

For more information on wiring in parallel see Connecting batteries in parallel or our article on building battery banks. The basic concept when connecting in series is that you add the voltages of the batteries together, but the amp hour capacity remains the same.

How to make a bank of batteries?

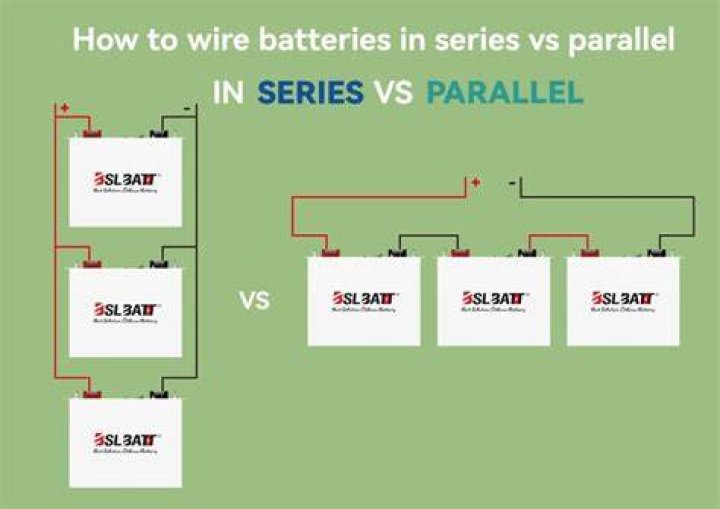

Batteries joined together in Series and Parallel: the above diagram shows how we start to create a bank of batteries as we would use in principle on an EV (electric vehicle). By joining two battery banks (already linked in series) and connecting them in parallel, we increase the battery banks voltage and Ampere-hours.

Does connecting batteries in series increase voltage or voltage?

Connecting in series increases voltage only. The basic concept when connecting in series is that you add the voltages of the batteries together, but the amp hour capacity remains the same. As in the diagram above, two 6 volt 4.5 ah batteries wired in series are capable of providing 12 volts (6 volts + 6 volts) and 4.5 amp hours.
