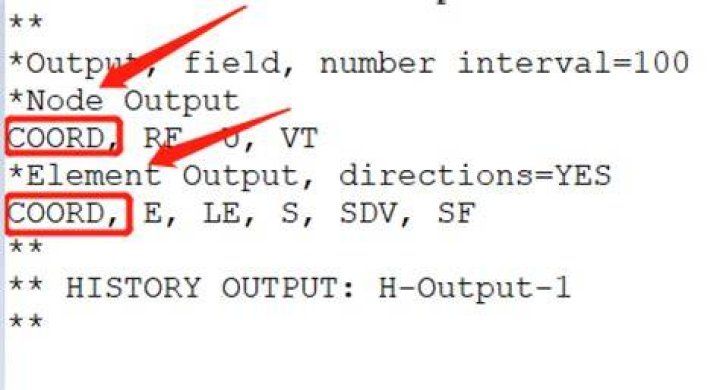

In CAE, you can request coordinate outputs by going to the Field Output Request->Edit->Volume/Thickness/Coordinates->COORD, Current nodal coordinates. This way, you will be able to obtain nodal coordinates in ODB, but not the coordinates at the integration points.

How do I find my Abaqus node number?

Go to View tab–> Assembly display option–>Mesh–>Show node labels. Node numbers will be displayed when you are in Mesh module.

What is Vertex Abaqus?

Vertices are point regions of geometry.

What is integration point in Abaqus?

The expression “full integration” refers to the number of Gauss points required to integrate the polynomial terms in an element’s stiffness matrix exactly when the element has a regular shape. Fully integrated, quadratic elements (available only in Abaqus/Standard) use three integration points in each direction.

What is node in Abaqus?

This section describes the methods for defining nodes in an Abaqus input file. In a preprocessor such as Abaqus/CAE, you define the model geometry rather than the nodes and elements; when you mesh the geometry, the preprocessor automatically creates the nodes and elements needed for analysis.

How do you find the distance between nodes?

The distance between two nodes can be obtained in terms of lowest common ancestor. Following is the formula. Dist(n1, n2) = Dist(root, n1) + Dist(root, n2) – 2*Dist(root, lca) ‘n1’ and ‘n2’ are the two given keys ‘root’ is root of given Binary Tree.

What is query in Abaqus?

The Query toolset allows you to obtain general information about your model. The Visualization module displays the requested information in the message area, and the same information is written to the replay file.

What are integration points?

Integration points are points at which documents within your process move from one system or application to another. Using the Customer Order Processing process example, you can see the activities in which documents move from one system to another.

What is an integration point FEA?

An integration point is the point within an element at which integrals are evaluated numerically. These points are chosen in such a way that the results for a particular numerical integration scheme are the most accurate. Depending on the integration scheme used the location of these points will vary.
