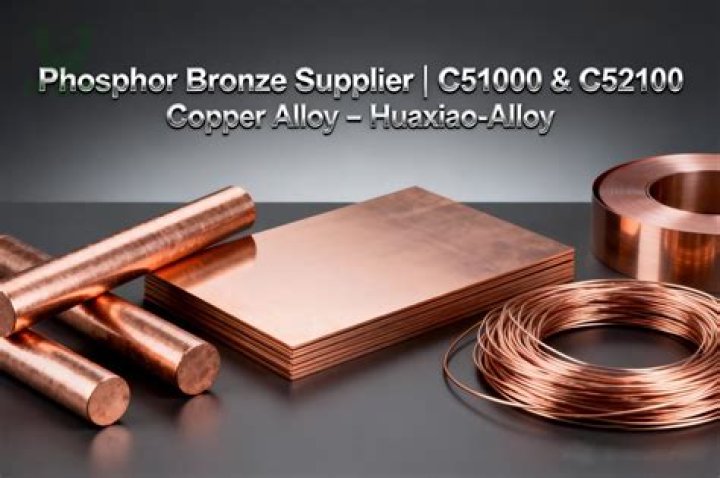

Phosphor bronze is a copper alloy containing both tin and phosphorus. It’s a highly-valuable, specialty metal with many positive attributes.

What is phosphor bronze used for?

Phosphor bronze alloys are primarily used for electrical products because they have superb spring qualities, high fatigue resistance, excellent formability, and high corrosion resistance. The addition of tin increases the corrosion resistance and strength of the alloy.

Is 510 bronze phosphor bronze?

Phosphor Bronze C51000 (CuSn5) is a tin bronze with the addition of 5% tin and 0.2% phosphorus for deoxidation. The tin increases the strength of the alloy and gives good corrosion resistance in marine environments. C51000 is one of the most widely used phosphor bronzes, owing to its unique combination of properties.

How can you tell if something is phosphor bronze?

Know the Differences between Brass and Phosphor Bronze The thing that needs to be understood is both brass and phosphor bronze are made mixing copper with other materials. While brass combines the mixture of copper and zinc, phosphor bronze is constituted by copper, phosphorous and tin.

Is phosphor bronze easy to machine?

Machinability. PB1 Phosphor bronze has very good machining qualities and is free cutting but very tough; the use of tipped tools is recommended. Bronze gets hot when drilling and turning, therefore, the use of a coolant is recommended.

Is phosphor bronze harder than brass?

While brass is valued for its malleability, phosphor bronze lends a greater hardness. As a harder metal, phosphor bronze has a higher melting point than brass. Some of the key properties of phosphor bronze are corrosion resistance, fatigue resistance, and excellent elasticity.

How hard is phosphor bronze?

Most phosphor bronze alloys are tarnish and corrosion resistant, making them useful in electrical conduit and other caustic environments….

What is the melting point of phosphor bronze?

Physical Properties

Is Phosphor Bronze self lubricating?

The material’s strength and corrosion resistance are similar to PB102. The addition of 4% lead, dispersed throughout the matrix, enables excellent self-lubrication which makes the alloy highly suitable for bearing bushes and many applications where full lubrication cannot be assured.

What ingredients do you need to make bronze?

Bronze is an alloy that consists primarily of copper with the addition of other ingredients. In most cases the ingredient added is typically tin, but arsenic, phosphorus, aluminum, manganese, and silicon can also be used to produce different properties in the material.

Is phosphor bronze better than brass?

What is H08 C51000?

Spring-Tempered (H08) C51000 Bronze. H08 C51000 bronze is C51000 bronze in the H08 (spring) temper. It has the highest strength and second lowest ductility compared to the other variants of C51000 bronze.

What is C510 phosphor bronze?

C510 Phosphor Bronze is a wrought alloy and has a higher yield strength than most of the cast products. The addition of phosphor in this bronze alloy increases wear resistance, fatique resistance, and hardness. While the addition of tin increases the overall corrosion resistance and strength.

How do the material properties cards compare H08 C51000 bronze?

The graph bars on the material properties cards below compare H08 C51000 bronze to: wrought bronzes (top), all copper alloys (middle), and the entire database (bottom). A full bar means this is the highest value in the relevant set.

What is the effect of phosphorus on the wear resistance?

The phosphorus increases the wear resistance and stiffness of the alloy. These alloys are notable for their toughness, strength, low coefficient of friction, and fine grain.
