5.2. Brittle fracture means fracture of material without plastic deformation or with very small plastic deformation before fracture. Rock, concrete, glass, and cast iron all have such property, so they are called brittle materials.

What are fracture surfaces?

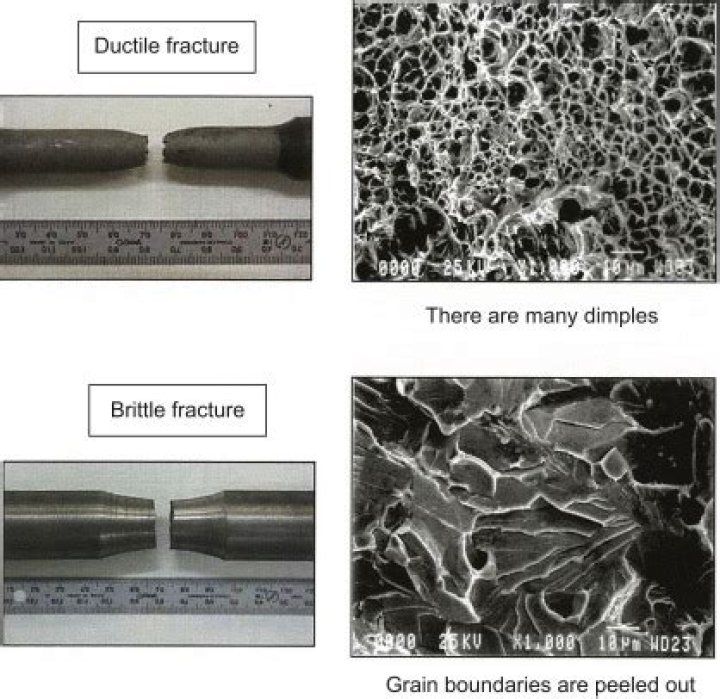

The fracture surface of a brittle failure is usually reasonably smooth. The crack propagates through the material by a process called cleavage. The images below show the fracture surface of a steel that failed in a brittle manner.

What is brittle structure?

A material is brittle if, when subjected to stress, it fractures with little elastic deformation and without significant plastic deformation. Brittle materials absorb relatively little energy prior to fracture, even those of high strength.

What is brittle fracture ceramic?

Brittle fracture is an unstable failure process that occurs in fibre–polymer composite materials, metals with high strength and low ductility, and in some metal types at low temperature (i.e. below the ductile/brittle transition temperature).

What happens brittle fracture?

Brittle Fracture is the sudden, very rapid cracking of equipment under stress where the material exhibited little or no evidence of ductility or plastic degradation before the fracture occurs.

What causes a brittle fracture?

Cracks resulting from machining, quenching, fatigue, hydrogen embrittlement, liquid-metal embrittlement, or stress corrosion also lead, to brittle fracture.

Who is theory explain brittle fracture?

Explanation: Griffith extensively studied brittle fracture. He proposed a mechanism to explain it. He did it using theory of microcracks. 3.

What is brittle damage?

9.1 Damage of Elastic-Brittle Material 9.1.1 Damage of Brittle Material1. In ductile materials, such as metals, large irreversible deformation can develop with- out any material damage. That is to say, as regards dislocation motion in crystalline. 1 Concrete, rocks and ceramics are usually called brittle materials.

What is meant by brittleness?

Brittleness describes the property of a material that fractures when subjected to stress but has a little tendency to deform before rupture. Brittle materials are characterized by little deformation, poor capacity to resist impact and vibration of load, high compressive strength, and low tensile strength.

How does brittle fracture happen?

Ductile and Brittle Fractures Brittle fractures occur when the material is subject to stresses that are smaller than the yield limit of the material. Machine design normally is based on ductile material; and the design criteria are meant to avoid plastic deformation and, in certain cases, elastic deformations.

In brittle crystalline materials, fracture can occur by cleavage as the result of tensile stress acting normal to crystallographic planes with low bonding (cleavage planes). In amorphous solids, by contrast, the lack of a crystalline structure results in a conchoidal fracture, with cracks proceeding normal to the applied tension.

What are the differences between brittle and ductile fracture?

Typically brittle materials have a fracture strain less than 0.05 (∊f < 0.05) and ductile materials have a fracture strain greater than or equal to 0.05 (∊f ≥ 0.05). Ductile materials deform much more than brittle materials. Brittle materials fail suddenly, usually with no prior indication that collapse is imminent.

Why is a brittle fracture dangerous?

Brittle fracture is the worse type of failure for aircraft materials because it is fast and catastrophic, with no visible signs of damage or prior warning that the material will break. Brittle fracture can normally be identified by smoothness of the failed surface.

Is the crust of the Earth brittle?

The outer brittle shell of the Earth is the crust that forms the “skin” of the lithosphere . The crust is primarily composed of silicate rocks and ranging in thickness of about 5 to 70 km (about 3 to 43.5 mi) The crust is broken into several continental and oceanic tectonic (lithospheric) plates.
