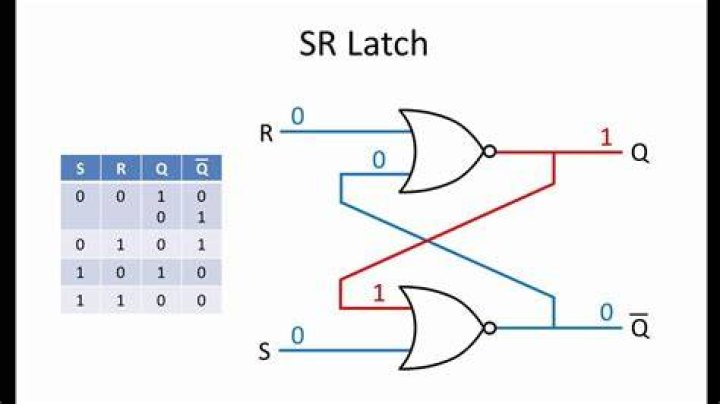

SR latch (Set/Reset) works independently of clock signals and depends only upon S and R inputs, so they are also called as asynchronous devices. SR latch can be created in two ways- by using NAND gates and also can be implemented using NOR gates. SR latch created by NAND gates is sometimes called an inverted SR latch. Working of SR NOR latch:

What are synchronous and asynchronous SR latches?

A gated SR latch (or clocked SR Latch) can only change its output state when there is an enabling signal along with required inputs. For this reason it is also known as a synchronous SR latch. Conversely, latches that can change its state instantaneously on the application of its required inputs conditions are known as asynchronous latches.

How do you find the next state in SR latch?

If D = 0 → S = 0 & R = 1, then next state Q t + 1 will be equal to ‘0’ irrespective of present state, Q t values. This is corresponding to the second row of SR Latch state table. If D = 1 → S = 1 & R = 0, then next state Q t + 1 will be equal to ‘1’ irrespective of present state, Q t values.

What is an invalid S-R latch?

If Q and not-Q happen to be forced to the same state (both 0 or both 1), that state is referred to as invalid. In an S-R latch, activation of the S input sets the circuit, while activation of the R input resets the circuit.

What is a latch in digital electronics?

Digital Electronics | SR Latch: In this tutorial, we are going to have a detailed discussion about Latches in Digital Electronics, its types, how they are designed and what are the operations formed by these latches? The word latch means “to lock”. A Latch is an example of a bistable multivibrator (the device which has two stable states).

How to use SR latch using NAND gate?

SR latch using NAND gate: In SR latch using NAND gate we will replace NOR gate with the NAND gate. The inputs are interchange in SR NOR latch we have reset in the upward gate and set in the lower gate. While in this circuit we are applying set to the upper NAND gate and reset to the lower NAND gate and Q and Q ̅ represents the output of the latch.

What is the D latch?

The D latch (D for “data”) or transparent latch is a simple extension of the gated SR latch that removes the possibility of invalid input states.
